Cebl gollwng crwn ffibr optig hunangynhaliol

Nifwynig

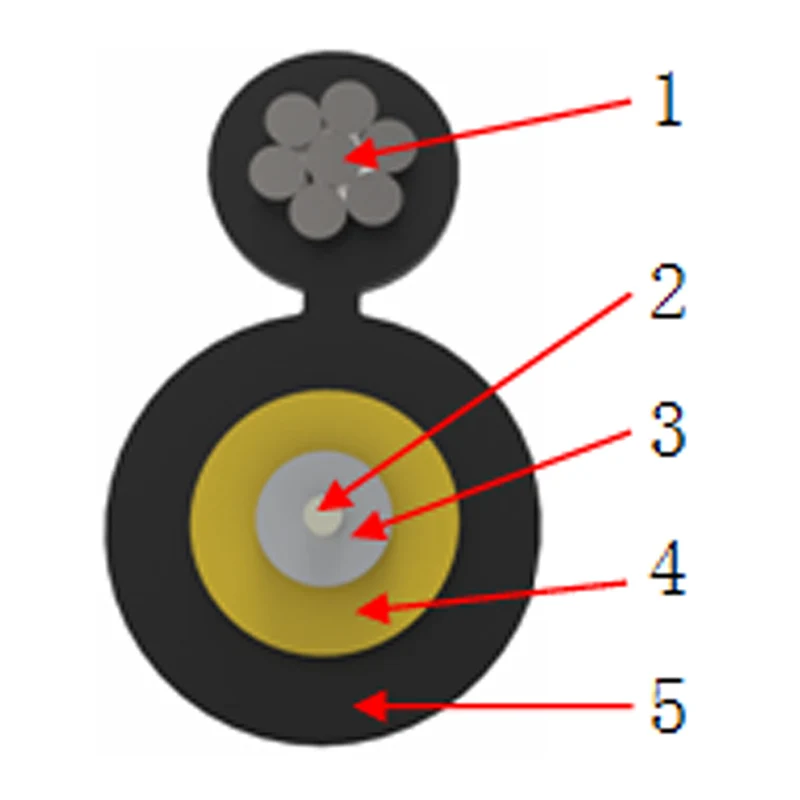

Heitemau

Materol

1

Cefnogi Aelod Cryfder

Gwifren ddur (sownd)

2

Ffibrau

G.652D (B1.3), G.657A1 (B6A1), G.657A2 (B6A2)…

3

Byffer tynn

Pvc 、 lszh

4

Aelod Cryfder

Edafedd aramid

5

Gwain allanol

Lszh

6

Lliwia ’

Duon

Math o gebl

Diamedrau

Cryfder tynnol

Gwrthiant mathru

Radiws plygu

B6A2

B6A1

B1.3

Byffer tynn

fethu

Hirdymor

Nhymor

Hirdymor

Nhymor

Statig

Ddeinamig

Statig

Ddeinamig

Statig

Ddeinamig

(mm)

(N))

(N/100mm)

(mm)

(mm)

(mm)

GJYRCH-1

0.90

3.5 - 6.2

300

600

1000

2200

15

30

20

40

30

60

GJYRCH-2

0.60

3.5 - 6.2

300

600

1000

2200

35

70

35

70

35

70

Math o Ffibr

Gwanhau

Colled Macro Bend (Max)

1310nm

1550nm

Φ30mm

10 Cylch (Troi)

Φ20mm

1 cylch (troi)

Φ15mm

1 cylch (troi)

Φ32mm

1 cylch (troi)

Φ60mm

100 cylch (troadau)

(db/km)

(db)

G.652 D.

0.38

0.28

Amherthnasol

Amherthnasol

Amherthnasol

0.05 @1550nm

0.05 @1625nm

G.657 A1

0.38

0.28

0.25 @1550nm

1.00 @1625nm

0.75 @1550nm

1.50 @1625nm

Amherthnasol

Amherthnasol

Amherthnasol

G.657 A2

0.38

0.28

0.03 @1550nm

0.10 @1625nm

0.1 @1550nm

0.2 @1625nm

0.5 @1550nm

1.0 @1625nm

Amherthnasol

Amherthnasol

Cludiant a Storio

Gosodiadau

Gweithrediad

Sylwadau

-40 ℃ - +60 ℃

-30 ℃ - +50 ℃

-40 ℃ - +60 ℃

Rohs
