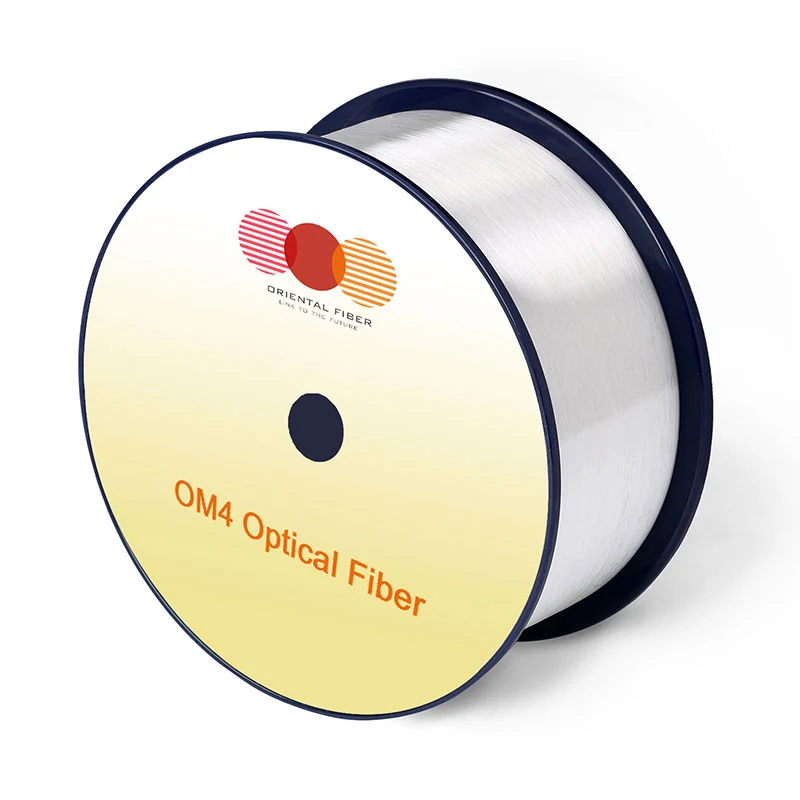

Ffibr optegol aml-fodd OM4

Nodweddion

Amodau

Penodedig Werthoedd

Unedau

Nodweddion Geometreg

Diamedr craidd

-

50 ± 2.5

[μm]

Craidd di-gylchedd

-

≤5.0

[%]

Diamedr cladin

-

125.0 ± 1.0

[μm]

Cladin di-gylchedd

-

≤0.6

[%]

Diamedr

-

245 ± 7

[μm]

Gwall concriticity cotio/cladin

-

≤10.0

[μm]

Gorchuddio di-gylchedd

-

≤6.0

[%]

Gwall cryno craidd/cladin

-

≤1.0

[μm]

Hyd dosbarthu

-

hefar i 17.6

[km/rîl]

Nodweddion optegol

Gwanhad

850nm

≤2.4

[db/km]

910nm

≤2.0

[db/km]

1300nm

≤0.6

[db/km]

Lled band moddol wedi'i lenwi

850nm

≥3500

[MHz · km]

1300nm

≥500

[MHz · km]

Lled band moddol effeithiol

850Nm-870NM

≥4700

[MHz · km]

910nm

≥3100

[MHz · km]

Hyd cyswllt

800GBase-SR8

100

[m]

800GBaseSr-4.2

100

[m]

Agorfa rifol

-

0.200 ± 0.015

-

Mynegai plygiannol grŵp

850nm

1.482

-

1300nm

1.477

-

Tonfedd gwasgariad sero, λ0

-

1295-1340

[nm]

Llethr gwasgariad sero ， s0

1295nm≤λ00 ≤1310nm

≤0.105

[ps/(nm2 · km)]

1310NM≤λ00 ≤1340NM

≤0.000375 (1590-l0)

[ps/(nm2 · km)]

Colled macrobending1

-

-

-

2 yn troi @ 15 mm radiws

850nm

≤0.1

[db]

1300nm

≤0.3

[db]

2 Troi @ 7.5 mm Radiws

850nm

≤0.2

[db]

1300nm

≤0.5

[db]

Nodweddion backscatter

1300nm

Cam （Cymedr mesur dwyochrog）

-

≤0.10

[db]

Afreoleidd -dra dros hyd ffibr a Pwynt Pwynt

-

≤0.10

[db]

Unffurfiaeth wanhau

-

≤0.08

[db/km]

Nodweddion Amgylcheddol

850nm & 1300nm

Beicio Tymheredd

-60 ℃ i 85 ℃

≤0.10

[db/km]

Beicio tymheredd

-10 ℃ i 85 ℃, 4% i 98% RH

≤0.10

[db/km]

Trochi dŵr

23 ℃, 30 diwrnod

≤0.10

[db/km]

Gwres sych

85 ℃ ， 30 diwrnod

≤0.10

[db/km]

Gwres llaith

85 ℃, 85% RH, 30 diwrnod

≤0.10

[db/km]

Manyleb fecanyddol

Prawf Prawf

-

≥9.0

[N]

-

≥1.0

[%]

-

≥100

[Kpsi]

Gorchudd llu stribedi

nodweddiadol grym cyfartalog

1.5

[N]

nghopa orfoded

≥1.3 ， ≤8.9

[N]

Cyrydiad straen deinamig Paraeter tueddiad （nd, nodweddiadol）

-

20

-
