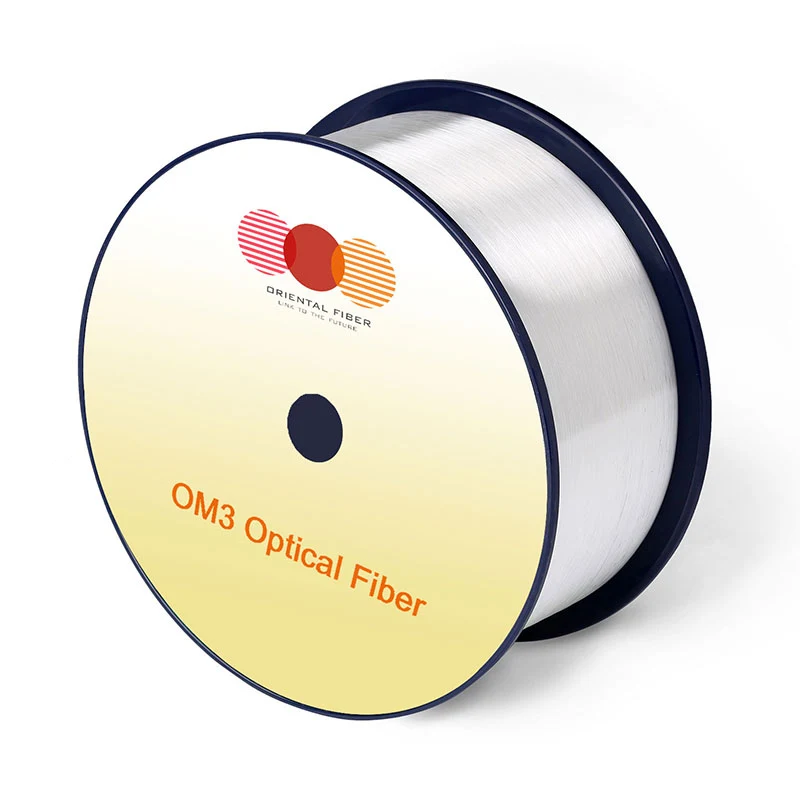

Ffibr optegol aml-fodd OM2+/OM3

Nodweddion

Amodau

Nodedig werthoedd

Unedau

Geometreg Nodweddion

Craidd Diamedrau

-

50 ± 2.5

[μm]

Craidd Di-gylcholrwydd

-

≤5.0

[%]

Cladin Diamedrau

-

125.0 ± 1.0

[μm]

Cladin Di-gylcholrwydd

-

≤0.6

[%]

Cotiau Diamedrau

-

245 ± 7

[μm]

Cotio/cladin Gwall crynodiad

-

≤10.0

[μm]

Cotiau Di-gylcholrwydd

-

≤6.0

[%]

Craidd/cladin Gwall crynodiad

-

≤1.0

[μm]

Danfon Hyd

-

hefar i 8.8

[km/rîl]

Optegol Nodweddion

Gwanhad

850nm

≤2.4

[db/km]

1300nm

≤0.6

[db/km]

-

-

Maxband® Om2+/om3/om4 plygu ansensitif

Gor -lynol Lled band moddol

850nm

≥700/≥1500/≥3500

[MHz · km]

1300nm

≥500/≥500/≥500

[MHz · km]

Effeithiol Lled band moddol

850nm

≥950/≥2000/≥4700

[MHz · km]

Nghais Pellter cefnogi ymlaen

-

-

-

40GBase-SR4 / 100gbase-sr101

850nm

-/140/170

[m]

10gbase-sr

850nm

150/300/550

[m]

1000Base-sr

850nm

750/1000/1100

[m]

Dmd Fanyleb

Nghydymffurfiol gyda ac yn fwy llym na gofynion IEC60793-2-10

-

Rhifiadol Agorfa

-

0.200 ± 0.015

-

Grwpiau Mynegai plygiannol

850nm

1.482

-

1300nm

1.477

-

Tonfedd gwasgariad sero (λ0)

-

1295-1340

[nm]

Llethr Gwasgariad Dim (S0)

1295nm≤λ00 ≤1310nm

≤0.105

[ps/(nm2 · km)]

1310NM≤λ00 ≤1340NM

≤0.000375 (1590-l0)

[ps/(nm2 · km)]

Macrobending Colled2

-

-

-

2 Troi Radiws @ 15 mm

850nm

≤0.1

[db]

1300nm

≤0.3

[db]

2 Radiws Troi @ 7.5 mm

850nm

≤0.2

[db]

1300nm

≤0.5

[db]

Backscatter Nodweddion

1300nm

Cam （Cymedr mesur dwyochrog）

-

≤0.10

[db]

Afreoleidd -dra Dros hyd ffibr ac amharodrwydd pwynt

-

≤0.10

[db]

Gwanhad Unffurfiaeth

-

≤0.08

[db/km]

Amgylcheddol Nodweddion

850nm & 1300nm

Nhymheredd Feicio

-60 ℃ i 85 ℃

≤0.10

[db/km]

Nhymheredd Feicio

-10 ℃ i 85 ℃ ， 4% i 98% RH

≤0.10

[db/km]

Dyfrhaoch Trochiad

23 ℃, 30 diwrnod

≤0.10

[db/km]

Syched Dwymon

85 ℃ ， 30 diwrnod

≤0.10

[db/km]

Wanychem Dwymon

85 ℃, 85% rh ， 30 diwrnod

≤0.10

[db/km]

Mecanyddol Manyleb

Phrawf Profest

-

≥9.0

[N]

-

≥1.0

[%]

-

≥100

[Kpsi]

Cotiau Llu

nodweddiadol grym cyfartalog

1.5

[N]

nghynnalau orfoded

≥1.3, ≤8.9

[N]

Paramedr tueddiad cyrydiad straen deinamig （nd, nodweddiadol）

-

20

-
