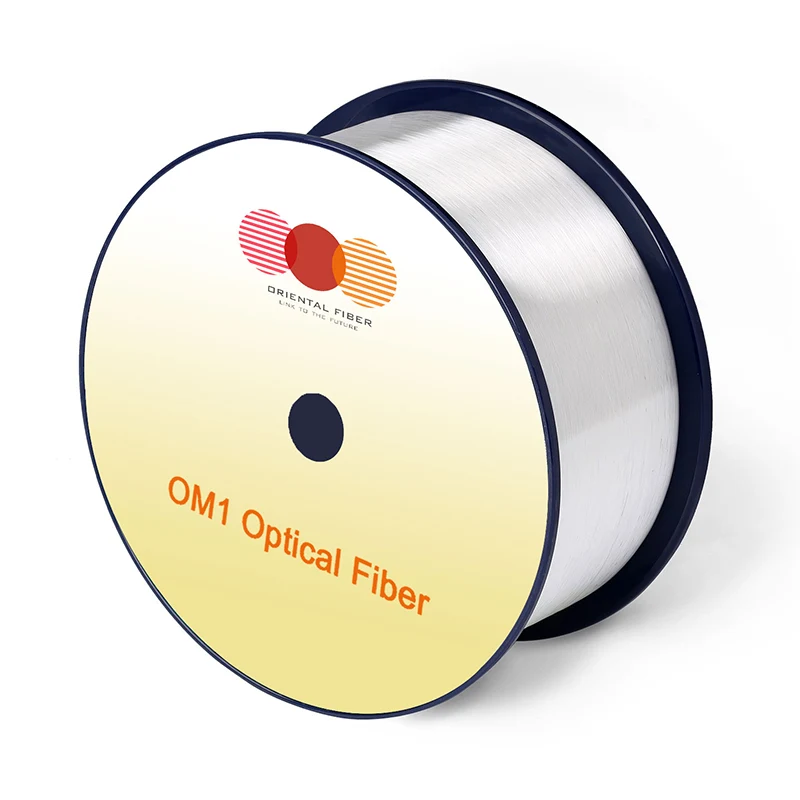

Ffibr optegol aml-fodd OM1

Nodweddion

Amodau

Gwerthoedd penodedig

Unedau

Nodweddion Geometreg

Diamedr craidd

-

62.5 ± 2.5

[μm]

Craidd di-gylchedd

-

≤5.0

[%]

Diamedr cladin

-

125.0 ± 1.0

[μm]

Cladin di-gylchedd

-

≤1.0

[%]

Diamedr

-

245 ± 7

[μm]

Gwall concriticity cotio/cladin

-

≤10.0

[μm]

Gorchuddio di-gylchedd

-

≤6.0

[%]

Gwall cryno craidd/cladin

-

≤1.5

[μm]

Hyd dosbarthu

-

hyd at 17.6

[km/rîl]

Nodweddion optegol

Gwanhad

850nm

≤2.7

[db/km]

1300nm

≤0.6

[db/km]

Lled band moddol wedi'i or -lenwi

850nm

≥200

[MHz · km]

1300nm

≥500

[MHz · km]

Agorfa rifol

-

0.275 ± 0.015

-

Mynegai plygiannol grŵp

850nm

1.496

-

1300nm

1.491

-

Tonfedd gwasgariad sero ， λ0

-

1320 ~ 1365

[nm]

Llethr gwasgariad sero ， s0

1320NM≤ λ0 ≤1348nm

≤0.11

[ps/(nm2 · km)]

1348nm λ0 ≤1365nm

≤0.001 （1458-l0）

[ps/(nm2 · km)]

Colled macrobending

-

-

-

100 yn troi @ 37.5 mm radiws

850nm

≤0.50

[db]

1300nm

≤0.50

[db]

Nodweddion backscatter

1300nm

Cam （Cymedr mesur dwyochrog）

-

≤0.10

[db]

Afreoleidd -dra dros hyd ffibr a pharhad pwynt

-

≤0.10

[db]

Unffurfiaeth wanhau

-

≤0.10

[db/km]

Nodweddion Amgylcheddol

850nm a 1300nm

Beicio Tymheredd

-60 ℃ i 85 ℃

≤0.10

[db/km]

Beicio tymheredd

-10 ℃ i 85 ℃ ， 4% i 98% RH

≤0.10

[db/km]

Trochi dŵr

23 ℃, 30 diwrnod

≤0.10

[db/km]

Gwres sych

85 ℃ ， 30 diwrnod

≤0.10

[db/km]

Gwres llaith

85 ℃, 85% rh ， 30 diwrnod

≤0.10

[db/km]

Manyleb fecanyddol

Prawf Prawf

-

≥9.0

[N]

-

≥1.0

[%]

-

≥100

[Kpsi]

Gorchudd llu stribedi

grym cyfartalog nodweddiadol

1.5

[N]

grym brig

≥1.3 ， ≤8.9

[N]

Paramedr tueddiad cyrydiad straen deinamig （nd, nodweddiadol）

-

20

-
