Cebl ffibr byffer tynn anweledig

Nifwynig

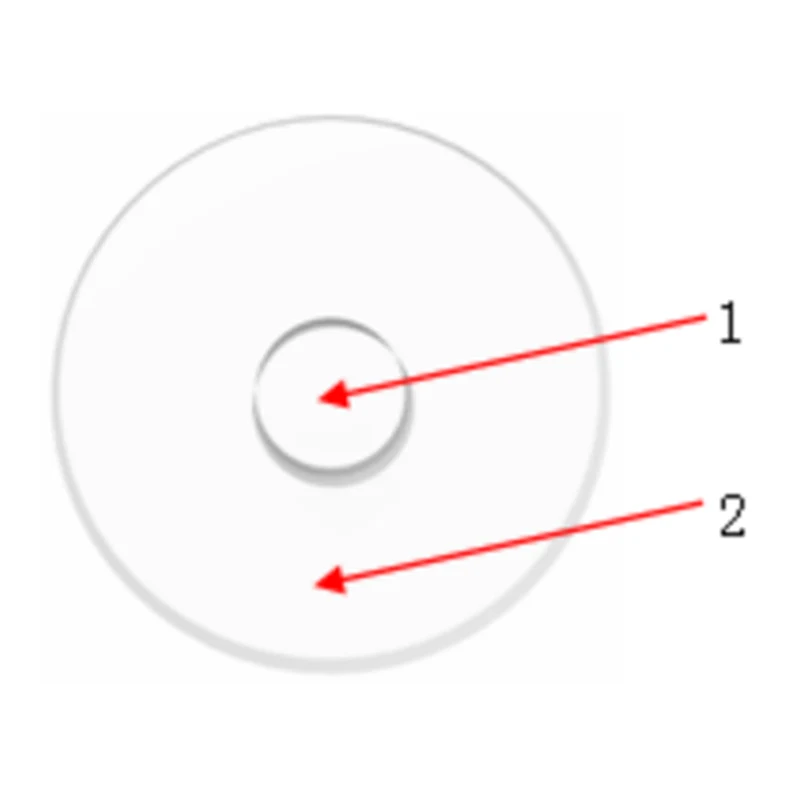

Heitemau

Materol

1

Ffibrau

G.657A1 (B6A1), G.657A2 (B6A2), G.657B3 (B6B3)

2

Byffer tynn

Neilon

3

Lliwia ’

Anweledig

Math o gebl

Dimensiwn

Cryfder tynnol

Gwrthiant mathru

Radiws plygu (B6A)

Radiws plygu (B6B)

Hirdymor

Nhymor

Hirdymor

Nhymor

Statig

Ddeinamig

Statig

Ddeinamig

(mm)

(N))

(N/100mm)

(mm)

(mm)

Φ 0.6 mm

0.6 ± 0.05

3

10

50

200

15

30

5

20

Φ 0.9 mm

0.9 ± 0.05

5

20

100

500

15

30

5

20

Math o Ffibr

Gwanhau

Colled Macro Bend (Max)

1310nm

1550nm

Φ30mm

10 Cylch (Troi)

Φ20mm

1 cylch (troi)

Φ15mm

1 cylch (troi)

Φ10mm

1 cylch (troi)

(db/km)

(db)

G.657a1

0.40

0.30

0.25 @1550nm

1.00 @1625nm

0.75 @1550nm

1.50 @1625nm

Amherthnasol

Amherthnasol

G.657a2

0.40

0.30

0.03 @1550nm

0.10 @1625nm

0.1 @1550nm

0.2 @1625nm

0.5 @1550nm

1.0 @1625nm

Amherthnasol

G.657b3

0.40

0.30

Amherthnasol

0.03 @1550nm

0.10 @1625nm

0.08 @1550nm

0.25 @1625nm

0.15 @1550nm

0.45 @1625nm

Cludiant a Storio

Gosodiadau

Gweithrediad

Sylwadau

-20 ℃ - +60 ℃

-10 ℃ - +50 ℃

-20 ℃ - +60 ℃

Rohs
