Strwythur syml, pwysau ysgafn ac ymarferoldeb uchel
Mae dyluniad ffliwt yn ei gwneud hi'n hawdd i stripio a splicing
Anweledig ac nid yw'n cael unrhyw effaith i addurno mewnol
Ceblau Dan Do
Ftth (ffibr i'r cartref)
Wedi'i derfynu ymlaen llaw yn y ffatri
|

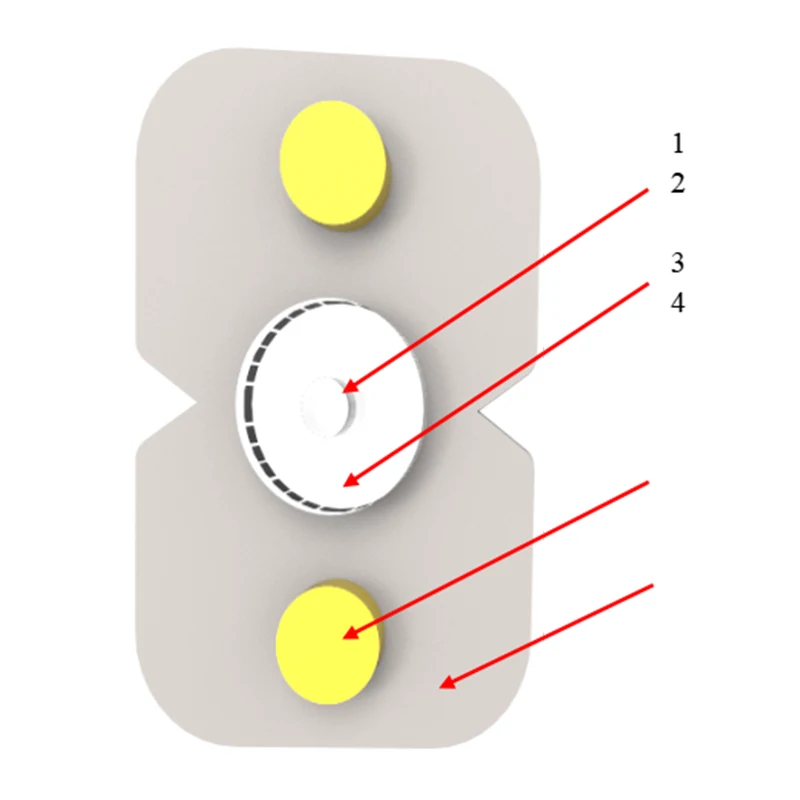

Nifwynig |
Heitemau |
Materol |
|
1 |
Ffibrau |
G.657A1 (B6A1), G.657A2 (B6A2), G.657B3 (B6B3) |
|
2 |
Byffer tynn |
Neilon |
|
3 |
Aelod Cryfder |
Gwifren Ddur, FRP, KFRP |
|
4 |
Gwain allanol |
Lszh ... |
|
5 |
Lliwia ’ |
Gwyn neu liwio |
|
Math o gebl |
Dimensiwn |
Cryfder tynnol |
Gwrthiant mathru |
Radiws plygu (B6A) |
Radiws plygu (B6B) |
||||
|
Hirdymor |
Nhymor |
Hirdymor |
Nhymor |
Statig |
Ddeinamig |
Statig |
Ddeinamig |
||
|
(mm) |
(N)) |
(N/100mm) |
(mm) |
(mm) |
|||||
|
GJXH-IF-1 |
2.0 × 3.0 |
60 |
120 |
1000 |
2200 |
20 |
40 |
10 |
20 |
|
Gjxfh -if - 1 |
2.0 × 3.0 |
40 |
80 |
500 |
1000 |
20 |
40 |
10 |
20 |
|
Math o Ffibr |
Gwanhau |
Colled Macro Bend (Max) |
||||
|
1310nm |
1550nm |
Φ30mm 10 Cylch (Troi) |
Φ20mm 1 cylch (troi) |
Φ15mm 1 cylch (troi) |
Φ10mm 1 cylch (troi) |
|
|
(db/km) |
(db) |
|||||
|
G.657a1 |
0.40 |
0.30 |
0.25 @1550nm 1.00 @1625nm |
0.75 @1550nm 1.50 @1625nm |
Amherthnasol |
Amherthnasol |
|
G.657a2 |
0.40 |
0.30 |
0.03 @1550nm 0.10 @1625nm |
0.1 @1550nm 0.2 @1625nm |
0.5 @1550nm 1.0 @1625nm |
Amherthnasol |
|
G.657b3 |
0.40 |
0.30 |
Amherthnasol |
0.03 @1550nm 0.10 @1625nm |
0.08 @1550nm 0.25 @1625nm |
0.15 @1550nm 0.45 @1625nm |
|
Cludiant a Storio |
Gosodiadau |
Gweithrediad |
Sylwadau |
|
-20 ℃ - +60 ℃ |
-10 ℃ - +50 ℃ |
-20 ℃ - +60 ℃ |
Rohs |
Gellir addasu'r holl werthoedd uchod.
